以太网交换安全
1.实验要求作为公司的网络管理员，为了提高公司网络的安全性，你决定在接入层交换机部署一些安全技术: DHCP Snooping、IPSG、端口安全、端口隔离。

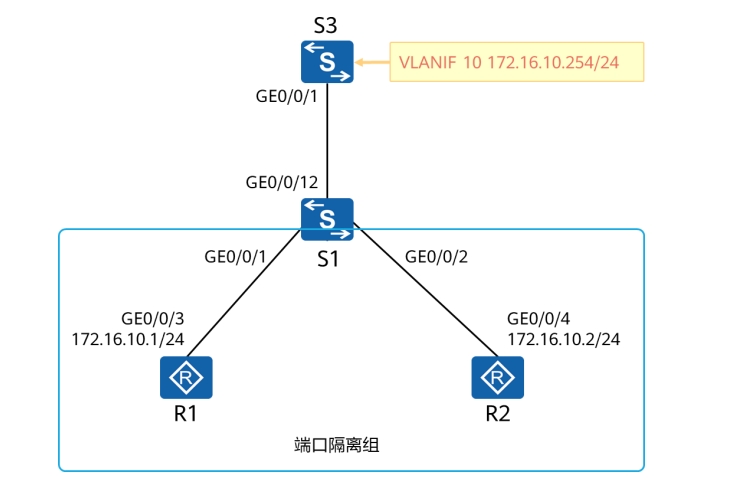

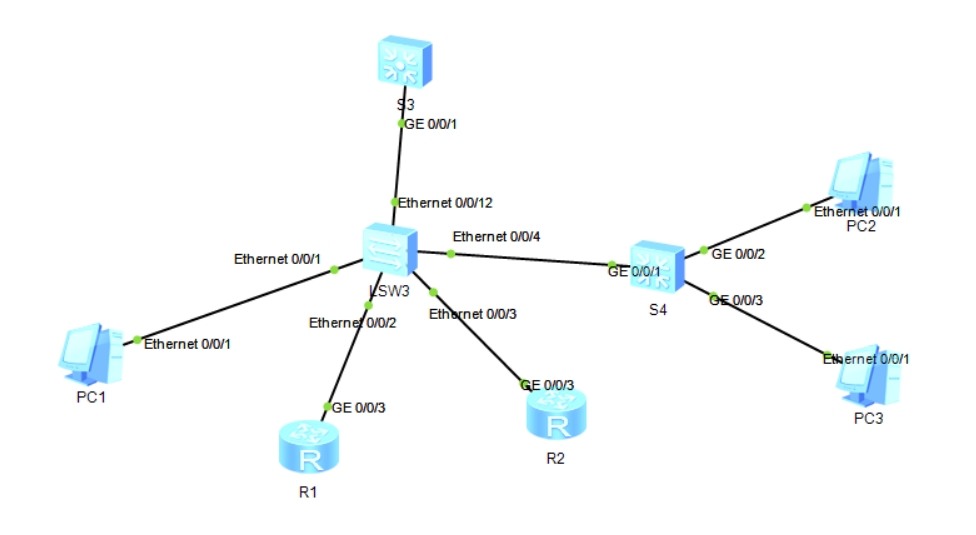

2.实验拓扑
3.关键技术
3.1 DHCP 配置
[S3]dhcp enable
[S3]ip pool vlan 10
[S3-ip-pool-vlan10] gateway-list 172.16.10.254
[S3-ip-pool-vlan10] network 172.16.10.0 mask 255.255.255.0
[S3-ip-pool-vlan10] dns-list 172.16.10.254
#静态指定ip与mac地址绑定
[S3-ip-pool-vlan10] static-bind ip-address 172.16.10.1 mac-address 5479-98bf-6555
[S3-ip-pool-vlan10] quit
#在vlan10接口下开启dhcp select
[S3]interface Vlanif 10
[S3-Vlanif10] dhcp select global
3.2 DHCP Snooping
[S1]dhcp enable
[S1]dhcp snooping enable ipv4
[S1]interface GigabitEthernet 0/0/12

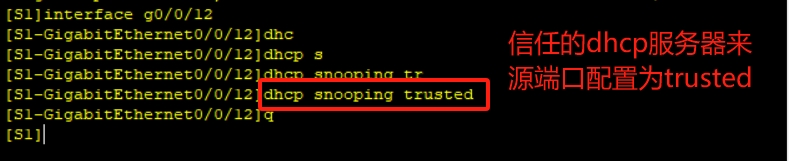

[S1-GigabitEthernet0/0/12] dhcp snooping trusted
[S1-GigabitEthernet0/0/12] quit
#注意，需要先开启 DHCP 功能
#使能 S1连接 R1、R2 接口的 DHCP Snooping 功能
[S1linterface GigabitEthernet 0/0/1

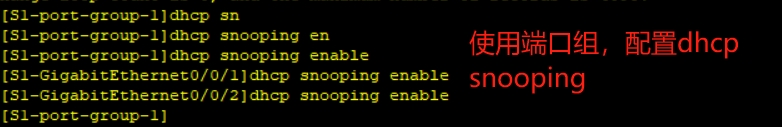

[S1-GigabitEthernet0/0/1] dhcp snooping enable
[S1-GigabitEthernet0/0/17 quit
[S1linterface GigabitEthernet 0/0/2
[S1-GigabitEthernet0/0/2] dhcp snooping enable
[S1-GigabitEthernet0/0/2] quit
检查dhcp snooping绑定表：
[S1]display dhcp snooping user-bind all
3.3 IPSG配置
#使能 S1 GEO/0/1、GEO/0/2 接口的PSG 功能
[S1]interface GigabitEthernet 0/0/1
[S1-GigabitEthernet0/0/1] ip source check user-bind enable
[S1-GigabitEthernet0/0/1] ip source check user-bind alarm enable
[S1-GigabitEthernet0/0/1] ip source check user-bind alarm threshold 3
[S1-GigabitEthernet0/0/1] quit
[S1]interface GigabitEthernet 0/0/2
[S1-GigabitEthernet0/0/2] ip source check user-bind enable
[S1-GigabitEthernet0/0/2] ip source check user-bind alarm enable
[S1-GigabitEthernet0/0/2] ip source check user-bind alarm threshold 3
3.4 端口安全
限制接入交换机接口下只允许一台终端接入，在 S1 连接终端的接口上开启端口安全，限制每接口只允许接入一台终端
#S1 连接 R2 的端口开启端口安全
[S1] interface GigabitEthernet 0/0/2
[S1-GigabitEthernet0/0/2] port-security enable
[S1-GigabitEthernet0/0/2] port-security max-mac-num 1
[S1-GigabitEthernet0/0/21 port-security mac-address sticky
[S1-GigabitEthernet0/0/2] port-security protect-action restrict
[S1-GigabitEthernet0/0/2] quit

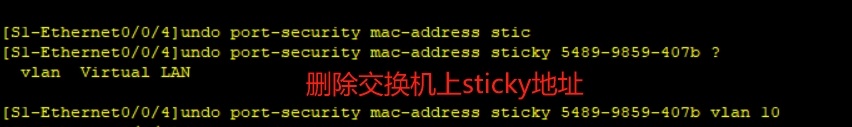

如果要修改port-security max-mac-num 数量，如果往小的改，需要删掉mac-address sticky先：
3.5 端口隔离
作用：限制终端之间的访问
#S1 上开启端口隔离，隔离模式限制为 L2
[S1lport-isolate mode 12
[S1]interface GigabitEthernet 0/0/1
[S1-GigabitEthernet0/0/1] port-isolate enable group 1
[S1-GigabitEthernet0/0/1] quit
[S1] interface GigabitEthernet 0/0/2
[S1-GigabitEthernet0/0/2] port-isolate enable group 1
[S1-GigabitEthernet0/0/2] quit
