H3C堆叠实验

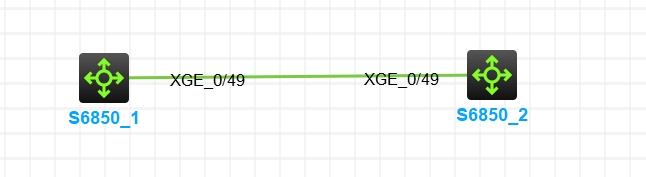

拓扑图：



SW1:

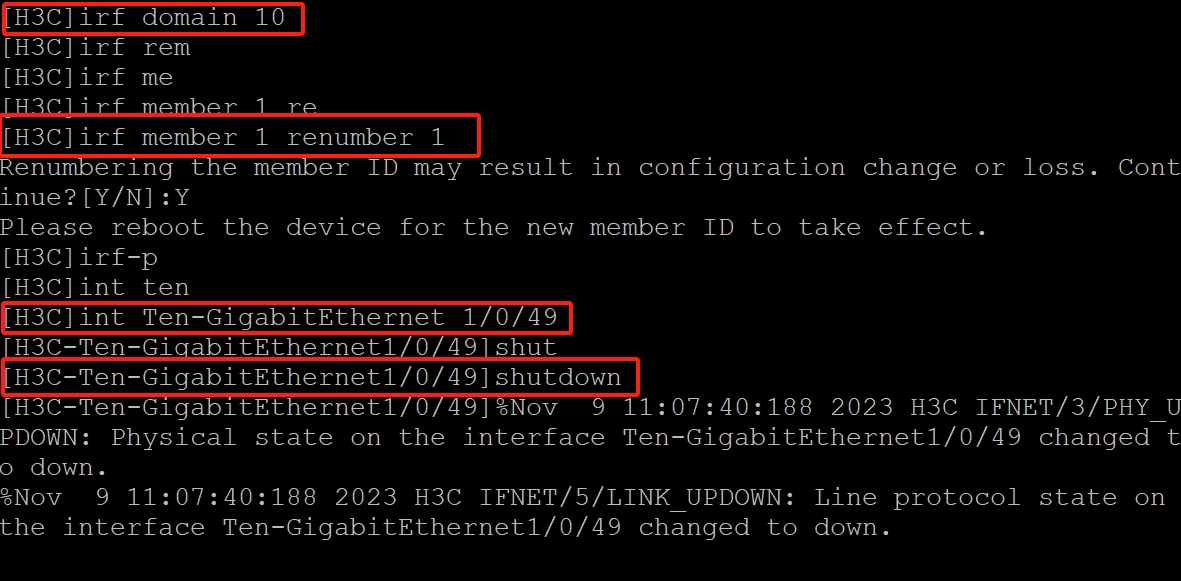

[H3C]irf domain 10
[H3C]irf member 1
[H3C-Ten-GigabitEthernet1/0/49]shutdown
[H3C]irf-port 1/1

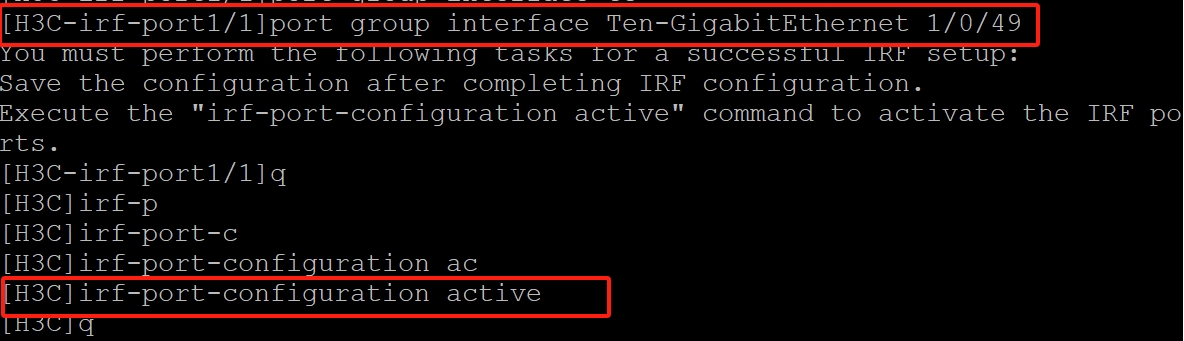

[H3C-irf-port1/1]port group interface Ten-GigabitEthernet 1/0/49
[H3C]irf-port-configuration active

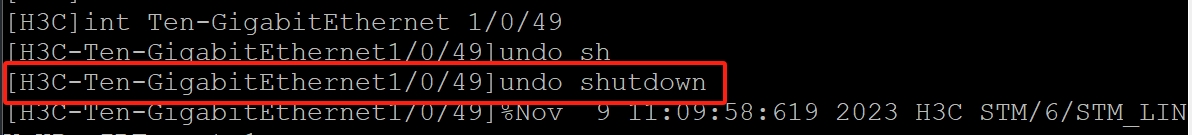

[H3C-Ten-GigabitEthernet1/0/49]undo shutdown
[H3C]SYS S1
保存配置









SW2:

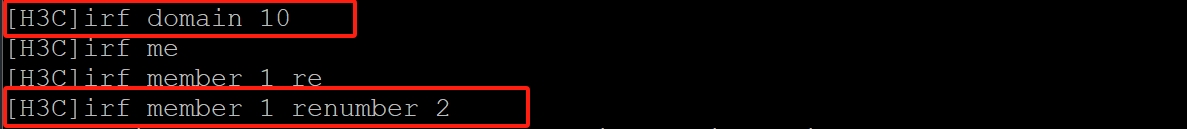

[H3C]irf domain 10
[H3C]irf member 1 renumber 2
[H3C-Ten-GigabitEthernet1/0/49]shutdown
[H3C]irf-port 1/2
[H3C-irf-port1/1]port group interface Ten-GigabitEthernet 1/0/49
[H3C]irf-port-configuration active
[H3C-Ten-GigabitEthernet1/0/49]undo shutdown
保存配置
重启

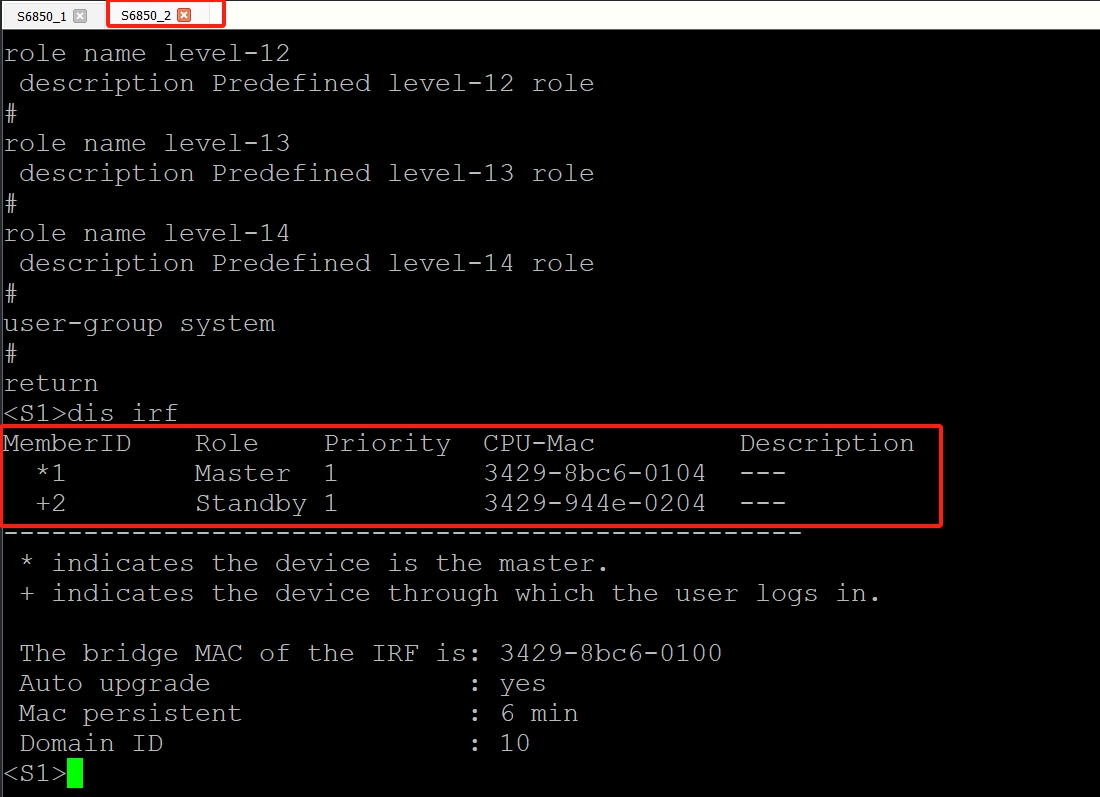

检查结果：
