M-LAG实验

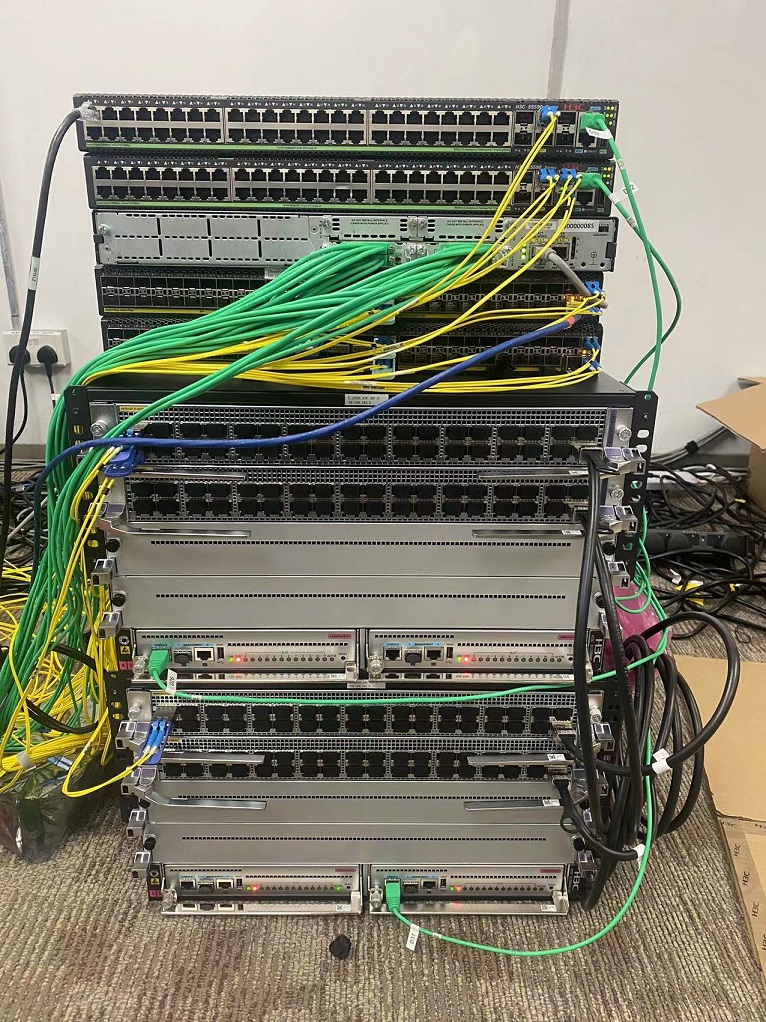

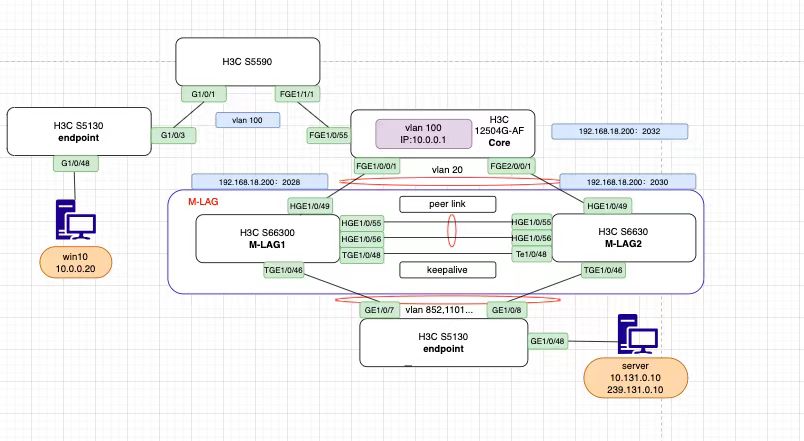

1.设备与组网拓扑：





2.M-LAG1配置：
m-lag system-mac 2-2-2
m-lag system-number 1
m-lag system-priority 123
m-lag standalone enable
m-lag keepalive ip destination 21.1.1.2 source 21.1.1.1
interface Ten-gigabitethernet1/0/48
port link-mode route
ip address 21.1.1.1 24
quit
m-lag mad exclude interface Ten-gigabitethernet1/0/48
interface bridge-aggregation 1
link-aggregation mode dynamic
quit
interface range h1/0/55 h1/0/56
port link-aggregation group 1
quit
interface bridge-aggregation 1
port m-lag peer-link 1
quit


3.M-LAG2配置：

m-lag system-mac 2-2-2
m-lag system-number 2
m-lag system-priority 123
m-lag standalone enable
m-lag keepalive ip destination 21.1.1.1 source 21.1.1.2
interface Ten-gigabitethernet1/0/48
port link-mode route
ip address 21.1.1.2 24
quit
m-lag mad exclude interface Ten-gigabitethernet1/0/48
interface bridge-aggregation 1
link-aggregation mode dynamic
quit
interface range h1/0/55 h1/0/56
port link-aggregation group 1
quit
interface bridge-aggregation 1
port m-lag peer-link 1
quit


4.M-LAG1配置上下联链路聚合：

interface bridge-aggregation 4
link-aggregation mode dynamic
port m-lag group 4
quit
interface h 1/0/49
port link-aggregation group 4
quit
interface bridge-aggregation 5
link-aggregation mode dynamic
port m-lag group 5
quit
interface h 1/0/46
port link-aggregation group 5
quit
vlan 100
quit
interface range bridge-aggregation 4 bridge-aggregation 5
port link-type trunk
port trunk permit vlan 100
undo port trunk permit vlan
port lacp system-priority 100
quit


4.M-LAG2配置上下联链路聚合：

interface bridge-aggregation 4
link-aggregation mode dynamic
port m-lag group 4
quit
interface h 1/0/49
port link-aggregation group 4
quit
interface bridge-aggregation 5
link-aggregation mode dynamic
port m-lag group 5
quit
interface h 1/0/46
port link-aggregation group 5
quit
vlan 100
quit
interface range bridge-aggregation 4 bridge-aggregation 5
port link-type trunk
port trunk permit vlan 100
undo port trunk permit vlan
port lacp system-priority 101
quit
